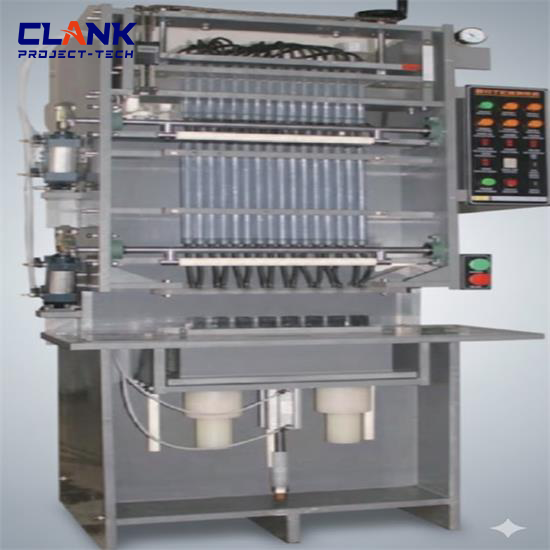

High Accuracy Vacuum Type Acid-filling Machine for SVR LA Batteries

Application

Used for SVR LA Batteries, especially fit for tiny type vacuum volume quantitative acid filling machine (e.g. 4V 200Ah ~ 1000Ah).

Function:

1. Automatic and manual working mode.
2. The acid filling amount, times of filling, times of vacuum can be set.
3. All kinds of time parameters can be set according to user's demand.

Technical requirement:

1. Power supply: 220V/50HZ;
2. Air source supply: 0.4–0.6 Mpa;
3. Controlling accuracy for single tube acid-filling: ≤ ±0.3%;
4. 16 pcs tubes acid-filling consistent accuracy: ≤ ±0.3%;
5. Acid-filling speed: 1500 pcs/hour;
6. The highest vacuum: -0.09 Mpa;
7. Single tube maximum acid-filling quantities: 20 ml;
8. Acid-filling method: measuring + vacuum;
9. Outside dimension: 750 mm * 720 mm * 2000 mm;
10. Suitable battery: 250–2000 mAh.
