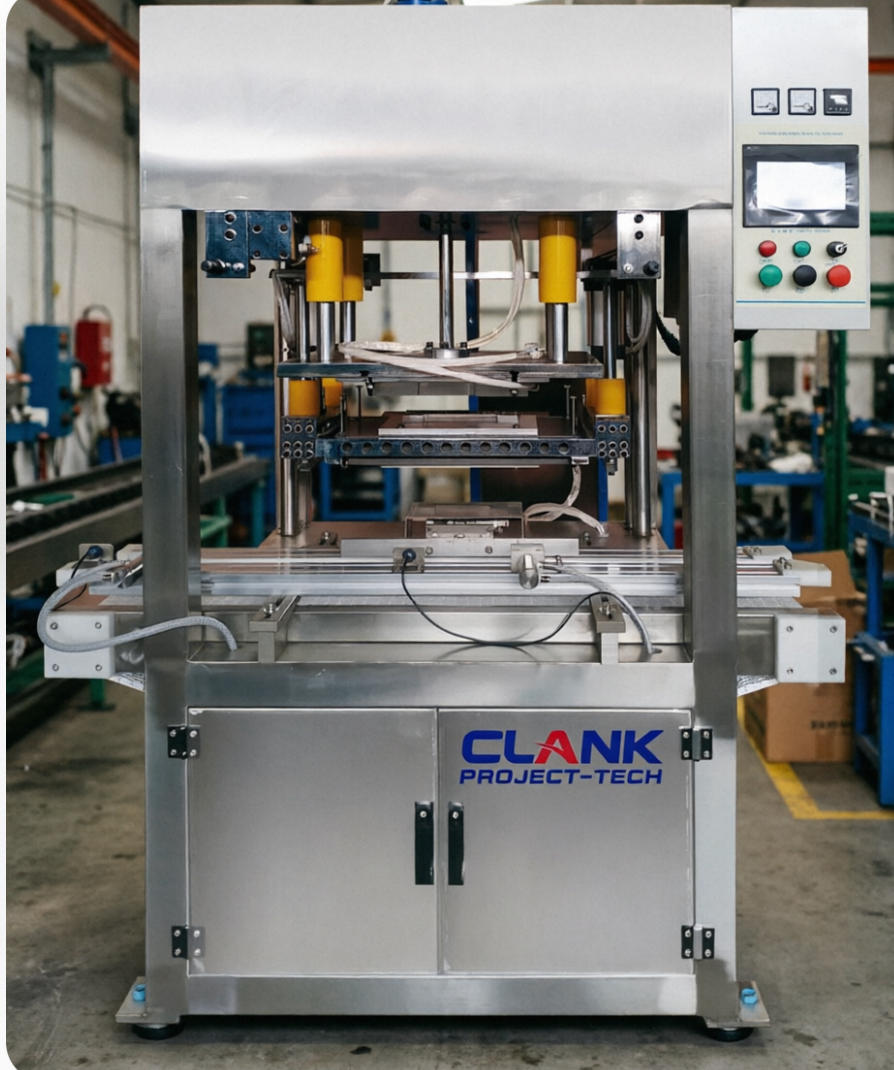

Automatic Top Cover Heat Sealing Machine

1. Application: Used for heat sealing the top cover for 12V32Ah-200Ah battery after acid-filling;

2. Operation: The battery will be positioned automatically by the photoelectric sensor; the machine will automatically seal the top cover of the battery, the finished battery will be output automatically.

3. Feature: The heating plate and heating mold are made of special aluminum alloy. It adopts special mold design, with fast heat transfer speed and uniform temperature, easy to change, safe, sealing quality is more reliable. The machine lifting adopts 4pcs quide pillar.

4. Production capacity: 2~2.5pcs batteries/ min

5. Heat time: 0-99 sec.

6. Heat temperature: 0~400°C

7. Electric Power: AC380V. 50Hz, 8KW

8. Air Source: 0.4m3/min, 0.6Mpa

9. Dimension (L*W*H): 1500*1100*1900mm

10. Weight: 1000kg

11. Main Configuration: 316L stainless steel frame, Mitsubishi PLC/HMI, customized stainless steel heating tube, AirTAC pneumatic components, Schneider low-voltage apparatus.
