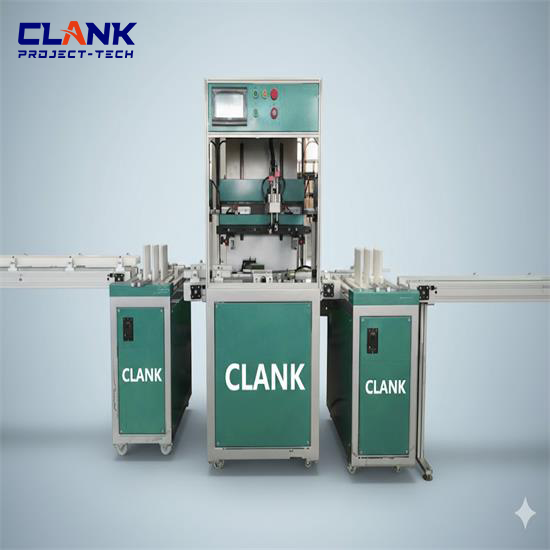

Automatic Heat Shrinkage Packing Machine

1. Application: Used for car battery film shrink packaging.

2. Operation: The battery is automatically conveyed to the machine by photoelectric sensor; the cylinder will send the battery into the position of film packaging. The machine will automatically pack the battery film, and the packaged battery will be automatically transported to the heat shrinkable furnace for film shrinkage.

3. Features: Customized heat sealing bar and aluminum casting heating plate, uniform temperature, long service life. The machine consists of 2 parts.

4. Main Configuration: Mitsubishi PLC, Delta HMI, frequency converter, AirTAC pneumatic components, customized stainless steel heating tube, etc.

5. Shrink Film Materials: PE, PVC, POF.

6. Shrinkage Film Thickness: 0.03–0.15 mm

7. Maximum Temperature of Heat Shrinkable Furnace: 160–260℃

8. Power Supply: 380V, 50HZ, 18 KW

9. Air Supply: 0.1 m³/min, 0.6 Mpa

10. Dimension (LWH): 4000×1200×1900 mm

11. Weight: 1000 kg

12. Production capacity: 1800 pieces/8 hours
