Application

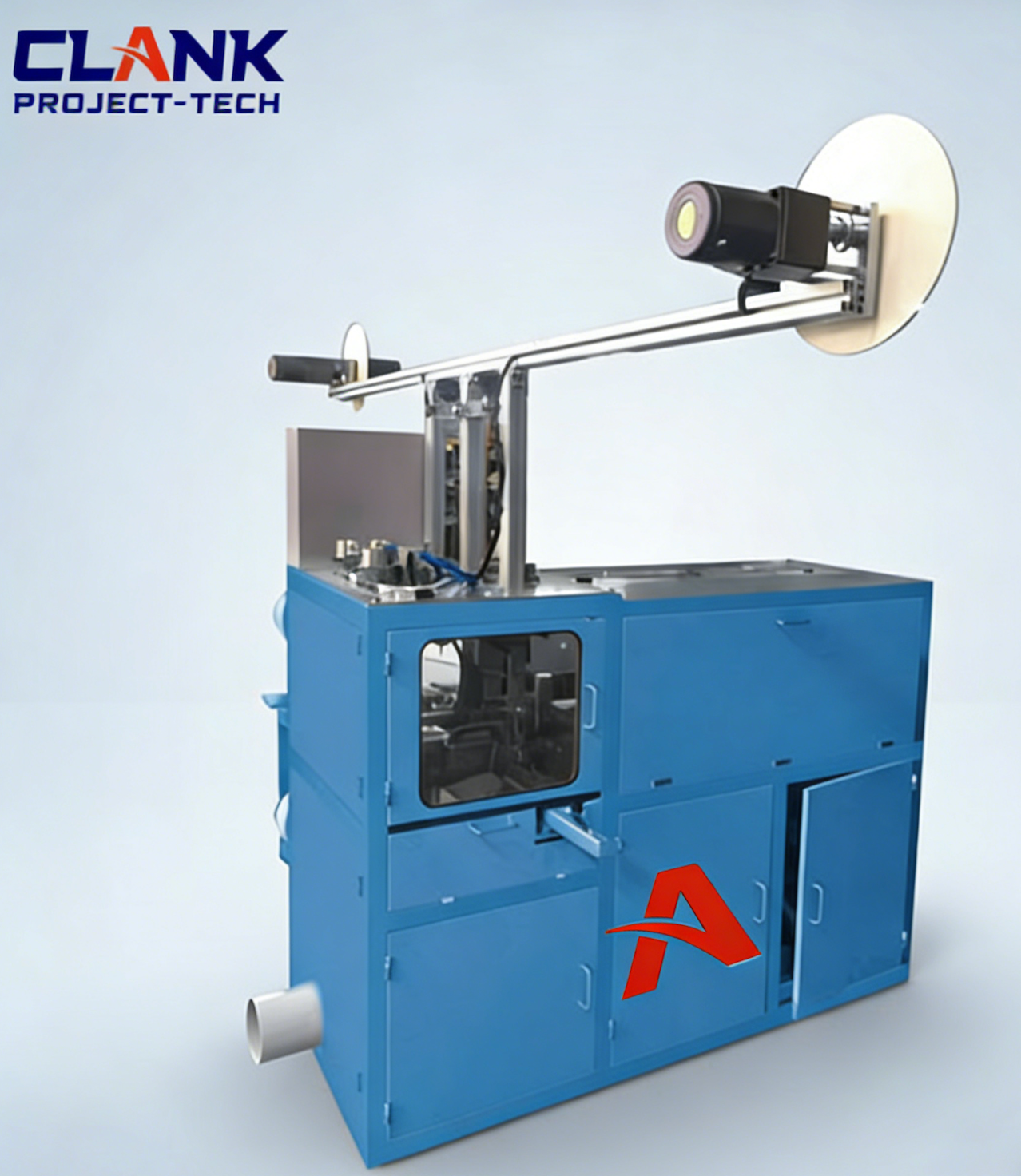

The user sets the required plate quantity; the machine can automatically envelop the plates and stack the plate group.

Features

It adopts human machine interface, easy for operation;

The enveloping length, the plate quantity can be set.

Parameters

1. Dimension: 180012001800 mm
2. Electrical Power: 1.5 KW, 380 Vac/50 Hz
3. Air Supply: 0.4~0.6 MPa
4. Weight: 800 KG
5. Enveloping method: single layer of AGM separator for positive plate, or double layers of AGM separator for positive plate
6. Production capacity: about 700 pcs 12V 7AH batteries/shift (depends on the plate quality; each plate group is calculated based on 3 pcs positive plates and 4 pcs negative plates)
7. Plate Rejection Rate: < 0.5% (the plate dimension tolerance should < 1 mm, without hole)
8. Plate Dimension: Plate Height (including lug) 49~100 mm, Plate Width = 38~65 mm
9. AGM Separator Thickness: < 2.2 mm
10. Negative Pressure Source: -0.04~0.08
11. Main Electrical and Pneumatic Components: Mitsubishi PLC, Panasonic servo motor, AirTAC, etc.
